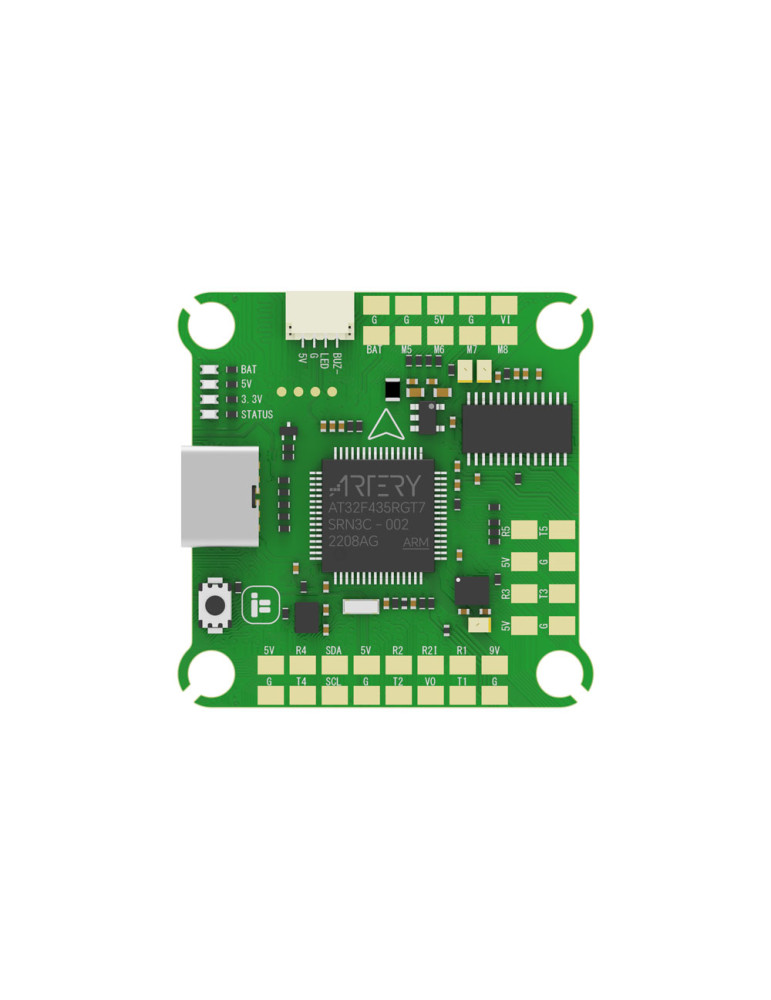

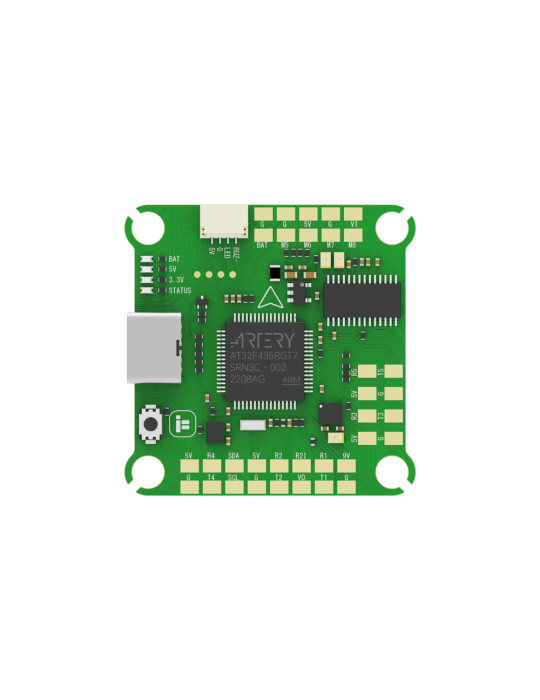

iFlight BLITZ ATF435 Flight Controller
Compact 30×30 FC with AT32F435 power - high performance at a low price.
133002
38.90 CHF
Tax included
|
plus shipping costs
Delivered in 1-2 working days
Loyalty Points - You will receive 0.78 CHF as a reward when you purchase 1 of this product. The reward can be converted into a voucher code.
The BLITZ ATF435 is based on the powerful AT32F435 MCU from ArteryTek - a cost-effective alternative to F7 chips with impressive performance. With integrated OSD, barometer, 32 MB black box and dual BEC (5 V & 9 V), this flight controller offers everything modern builds need - ideal for pilots who expect a lot of performance for their budget.
Specifications
- MCU: AT32F435RGT7
- Gyro: ICM42688
- Barometer: DPS310
- OSD Chip: AT7456E
- Flash: 32MB (Blackbox flash)
- UARTS: 6
- Motor outputs: 4x (SH1.0 connector)
- I2C serial: SDA / SLA pads
- Smartaudio: IRC Tramp VTX protocol supported
- LED controller: Yes
- Beeper pad: Yes
- Firmware target: IFLIGHT_BLITZ_ATF435
- Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
- BEC: 5V 2.5A / 9V 2A
- Dimensions: 36.5*35 mm
- Weight: 7.8g
Package Contents
- 1 x BLITZ ATF435 Flight Controller
- 1 x FC connectors
- 1 x silicon grommets
Data sheet
- 7.8g
- ICM 42688
- Yes
- 30.5x30.5mm
-
2S
3S
4S
5S
6S - Betaflight
- No
- 32MB
- Brushless
- AT32F435
