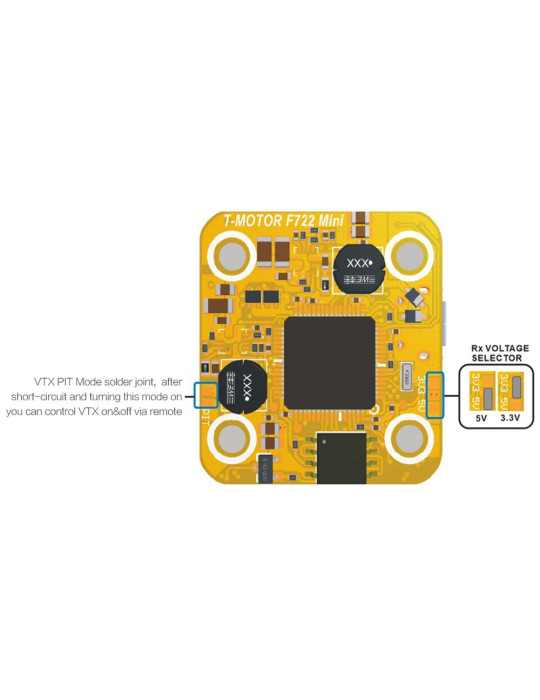

Tiger Motor Mini F7 Flight Controller (DJI HD compatible) MPU6000 Gyro
The new T-Motor's Mini F7 HD Flight Controller is loaded with lots of power and can be connected to the DJI Digital HD FPV System. Compare to standard versions FC, this mini FC is lighter and stronger. MPU6000 Gyro
124008
84.90 CHF
Tax included
|
plus shipping costs
Delivered in 1-2 working days
You will receive 1.70 CHF as a reward when you purchase 1 of this product. The reward can be converted into a voucher code.
The new T-Motor's Mini F7 HD Flight Controller is loaded with lots of power and can be connected to the DJI Digital HD FPV System. Compare to standard versions FC, this mini FC is lighter and stronger. Featuring F722 high-speed, noise reduction, MPU6000 gyroscope, Oneshot125/Oneshot42, Multishot, and common PWN signals, PIT switch function, and many other cool features that make this FC unique!
 Â
Specifications
- Input Voltage: 3-6S (12V-25.2V)
- MCU:Â STM32F722
- Blackbox: 16MB Onboard Flash
- UARTs: 5
- ESC Connections: 4
- Firmware: BetaFlight
- Target:Â TMOTORF7 (STM32F7X2)
- BEC:Â 5v/2A, 10V/2A (For DJI HD VTX)
- Buzzer: Pads
- Barometer: No
- Dimensions: 30x28mm
- Mounting Pattern:Â 20x20mm
- Weight: 5.1g
Â
Shipping Contents
- 1 x Tiger Motor Mini F7 Flight Controller (DJI HD compatible)
- 5 x Rubber Damper
- 2 x Cable
Data sheet
- Tiger Motor
- 5.1g
- MPU6000
- Yes
- 20x20mm
-
3S
4S
5S
6S - No
- No
- 4
- Betaflight
- No
- 16MB
- Brushless
- STM32F722
