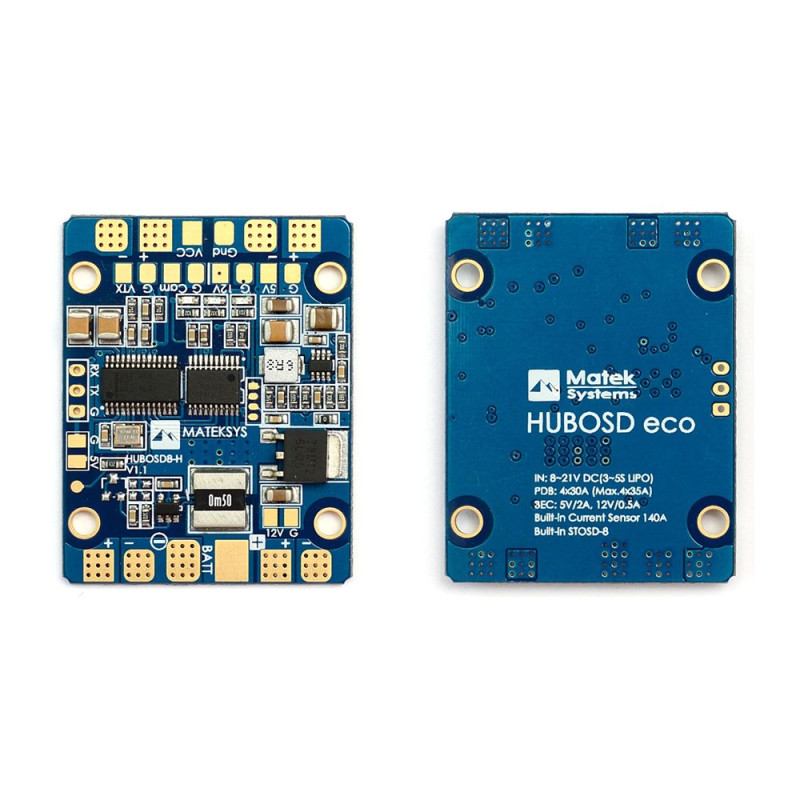

The HUBOSD8 has been engineered to provide the highest possible performance and reliability in a 46 x 36mm and 4 layers PCB. It is a multifinctional HUB with PDB, BEC 5V/2A & 12V/500mA, current sensor 140A, STOSD8. It is specially made for mini FPV quad. The BEC 12V is a linear regulator, no LC Filter needed. Built-In STOSD8 can suport Plug & Play, no complicated settings needed.
Features
- 2oz copper, 4-layers 1.6mm PCB
- 1x Battery Input, 4x ESC Outputs, 2x BEC 5V Outputs, 2x BEC 12V Outputs

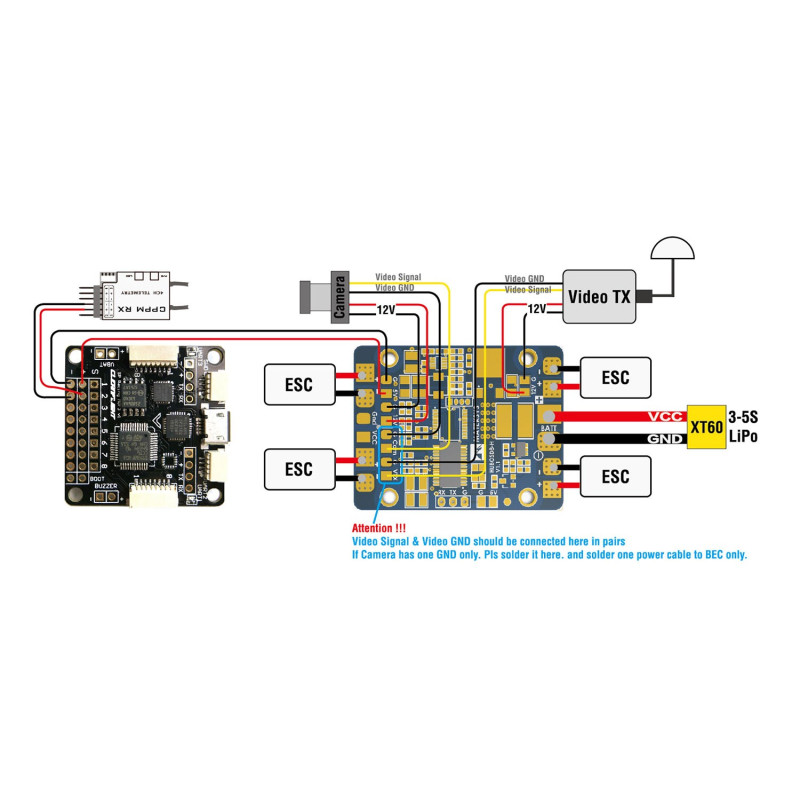

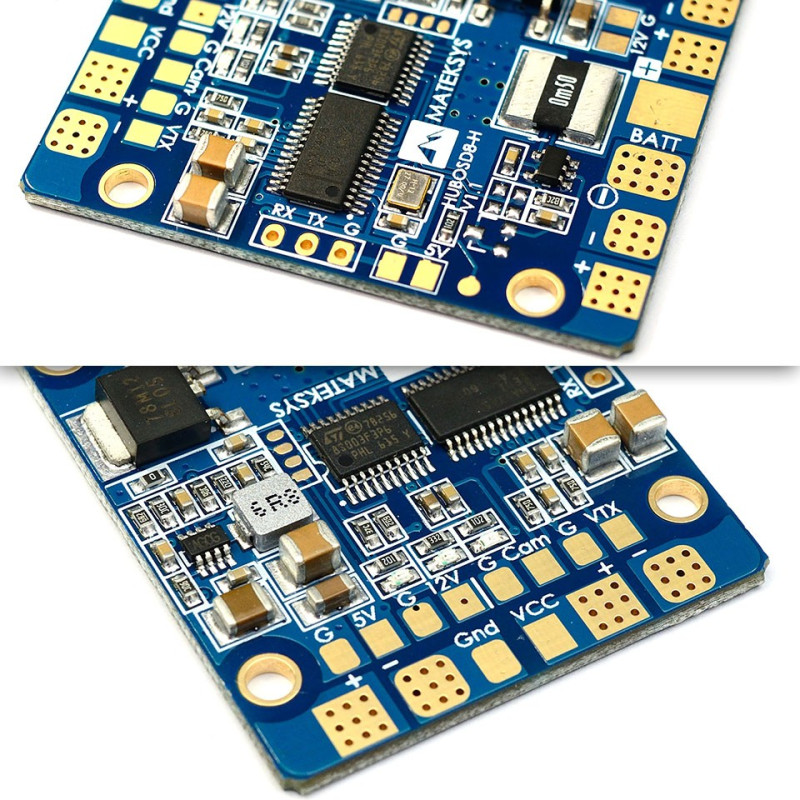

- Camera signal and Gnd pads, VTX Signal and Gnd pads

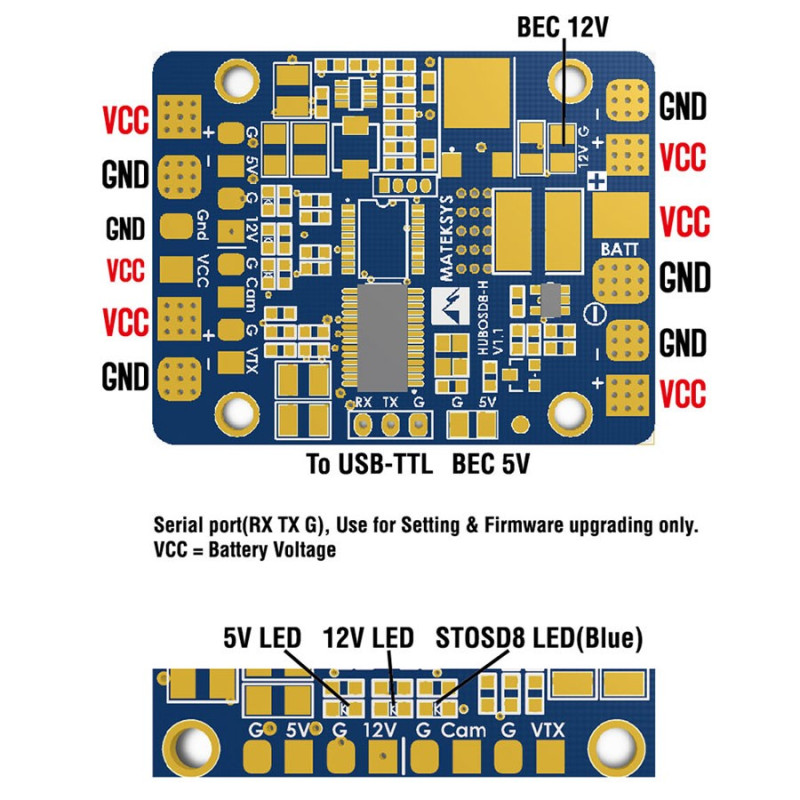

- 1x Serial port (RC, TX, Gnd)
Specifications
- General:
- Input voltage range (3S-5S operation): 8 - 21VDC
- PDB 4x30A (max 4x35A)
- Regulated 5V and 12V Outputs
- Current sensor 140A
- Built-in STOSD8
- PDB (ESC outputs):
- Continuous current: 30A per output
- Peak current (10 seconds/minute): 35A per output
- BEC 5V output:
- Designed for RC Receivers, Flight controllers, OSD, and Servos
- DC/DC synchronous buck regulator
- Voltage: 5.0 +/- 0.1VDC
- Continuous current: 2 Amps (max 2.5A 10s/Minute)
- Output Ripple: 40mV (VIn=16V, VOut=5V@2A load)
- Short-circuit tolerant (5 seconds/minute)
- BEC 12V output:
- Linear regulator, very low noise. LC Filter is needless
- Designed for Video TX or FPV Cam
- Voltage: 12.0 +/- 0.3VDC (4-5S operation)
- Continuous current: 500mA@16V IN, 400mA@20V IN
- Short-circuit tolerant (2 seconds/minute)
- If the Battery is 3S LiPo, Output Voltage=3S LiPo Voltage -1V
- Current Sensor:
- 140A
- If current >140A, STOSD displays 140A
- Physical:
- Dimensions: 46 x 36 x 4mm
- Weight: 8.5g
- Mounting holes 30.5mm square spacing, ø3mm
Pls visit STOSD website for more info: http://www.stosd.com
Shipping Contents

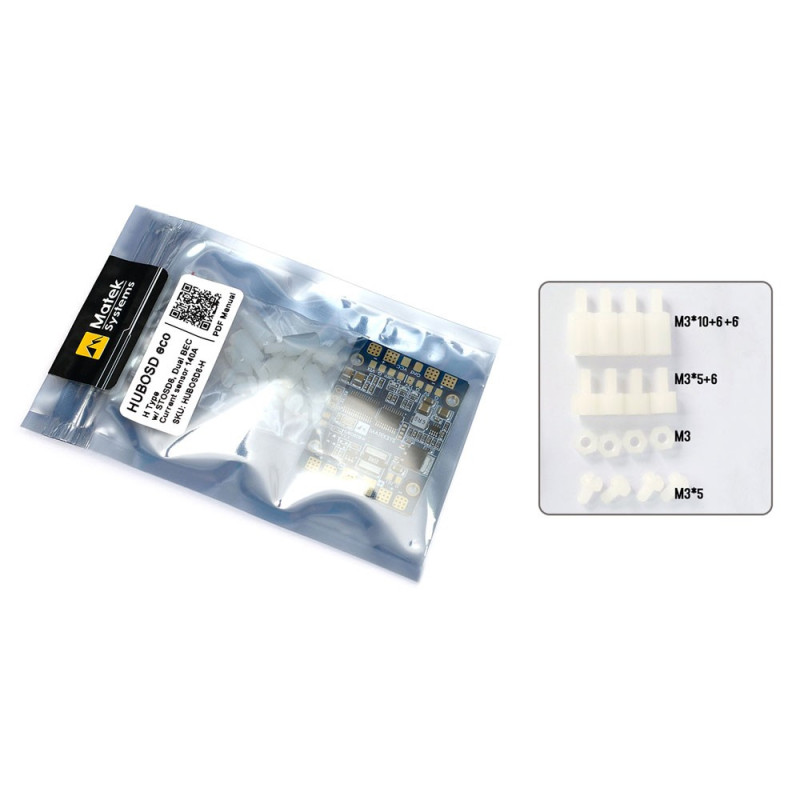

- 1 x HUBOSD8 with STOSD8, Current Sensor & Dual BEC
