Flywoo Firefly 20PRO O4 PRO 4S (BNF-DJI)

The Flywoo Firefly 20PRO/25MINI series is designed as a modular micro FPV system: a shared upper unit with a digital FPV system can be swapped between two differently configured frames - the 25MINI for efficient, long-endurance flights and the 20PRO for dynamic, agile flying.

Available Firefly 20PRO/25MINI Variants at a Glance

The Flywoo Firefly 20PRO/25MINI series - Compact Micro FPV Platform with a Versatile Concept

The Flywoo Firefly 20PRO/25MINI series combines an exceptionally compact design with a well-thought-out, modular concept for modern micro FPV drones. Depending on the version, the system is geared either more towards dynamic, agile flying or towards efficient, long-endurance freestyle and cinematic flights. This makes the platform a versatile foundation for different requirements and applications.

Just 4 Screws. Why build twice? The upper plate has been designed to accommodate the entire digital VTX and antenna system, while the powertrain remains securely bolted to the lower section. No resoldering required. In less than 3 minutes, the digital VTX can be transferred to the other frame, making it easy to switch from a 3S cinematic cruiser to a 4S bando basher.

The lightweight yet sturdy carbon frame, protected motor wires, and removable side panels ensure a clean and robust design. A vibration-damped camera mount with an adjustable angle supports smooth footage, while the service-friendly electronics with plug-and-play connectors simplify assembly and future modifications. This makes the Firefly 20PRO/25MINI series a flexible solution for pilots who value compact dimensions, intelligent construction, and versatile application options in a micro FPV drone.

Flywoo 20PRO O4 PRO

The Flywoo Firefly 20PRO O4 Pro is the performance-oriented version for pilots who want to combine a compact 2-inch setup with high-quality HD recording. The 4S system is designed for high dynamics, fast directional changes, and aggressive freestyle manoeuvres, while the DJI O4 Air Unit Pro with its 1/1.3-inch sensor, 4K/120fps, and 10-bit D-Log M delivers a powerful imaging solution for demanding FPV footage.

Features

• Compact 2-inch setup based on 4S for direct and dynamic flight characteristics
• DJI O4 Pro imaging system for high-quality recordings in an exceptionally small FPV setup
• Ideal for bando bashing, fast manoeuvres, and aggressive freestyle
• Strong performance in micro format for pilots seeking maximum agility

Specifications

• Frame
  • Firefly 20PRO Frame kit
• Propeller
  • Diameter: 2"
  • Blades: 3
  • Pitch: 2.3"
  • Shaft: 1.5mm
• Motors
  • Stator: 13mm x 3mm (1303)
  • Kv: 6000kv
  • Shaft Diameter: 1.5mm
  • Propeller Mount: T-mount
• AIO FC
  • Flight Controller/ESC: GOKU F405 SE 3-4S 20A AIO
  • Receiver: DJI SBUS
  • Battery Connector: XT30
• Camera and VTX
  • DJI O4 PRO
• Recommended Batteries (not included)

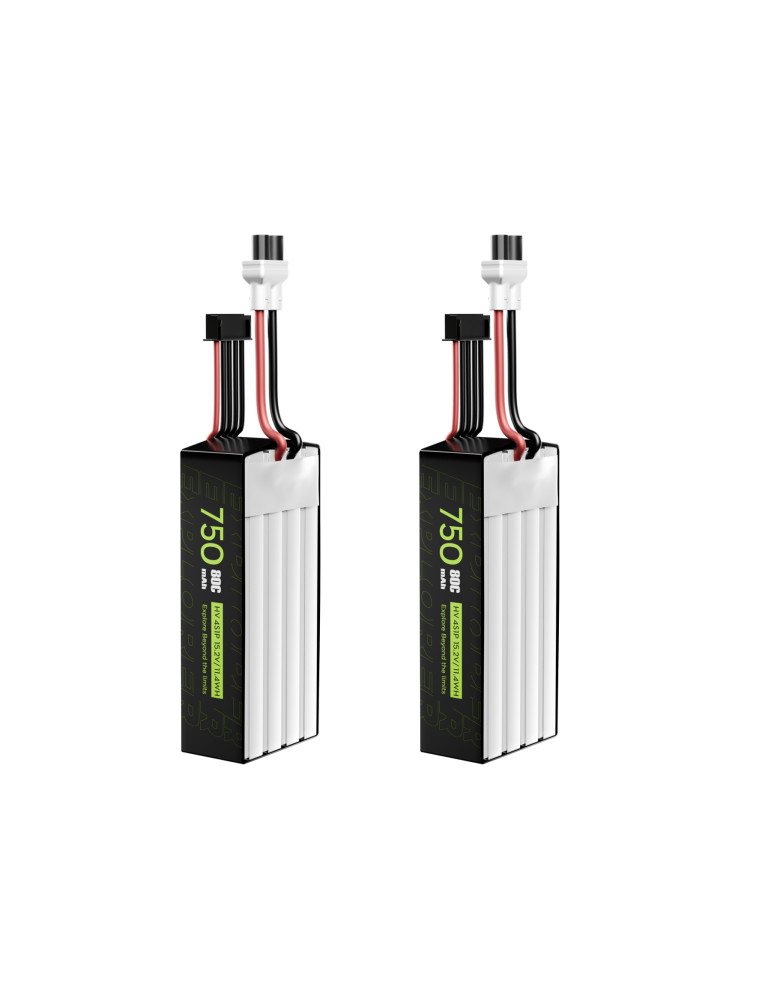

  • Explorer 750mAh LiHV 4S
  • Explorer 550mAh LiHV 4S

Package Contents

• 1 × Firefly 20PRO O4 PRO 4S - DJI
• 8 × 2023-3 propellers
• 1 × hex wrench
• 2 × anti-slip battery pads
• 1 × ND filter
• 1 × 90° USB Type-C data cable
• 2 × 10 × 130 mm battery straps
• 2 × plastic protective side panels, purple
• 2 × plastic protective side panels, black
• 1 × Flywoo O3/O4 shock absorber ball
• 1 × M2 × 6.6 mm shock absorber ball
• 5 × M2 nylon nuts
• 5 × washers
