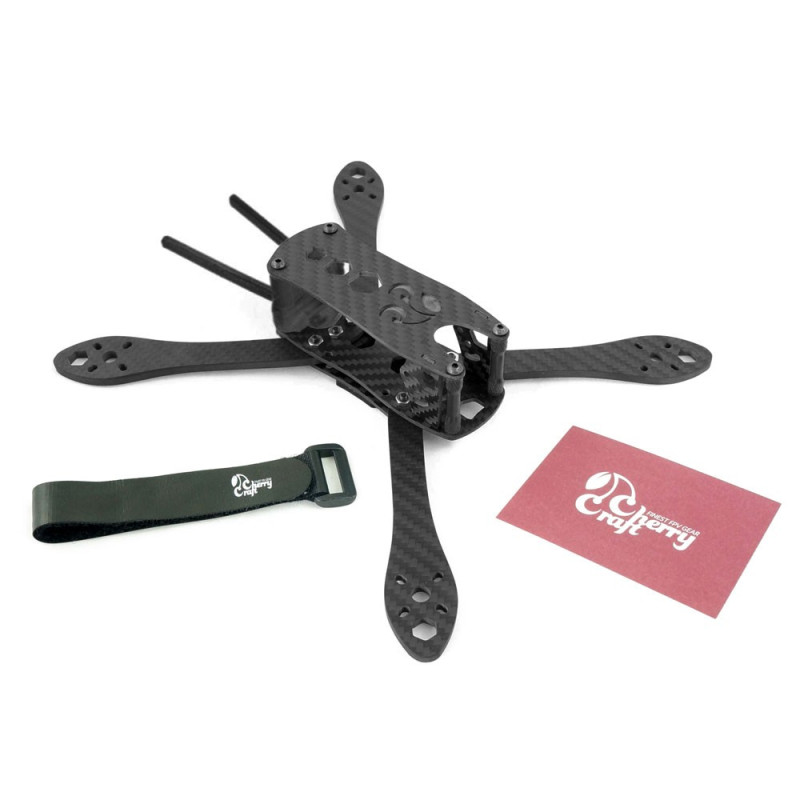

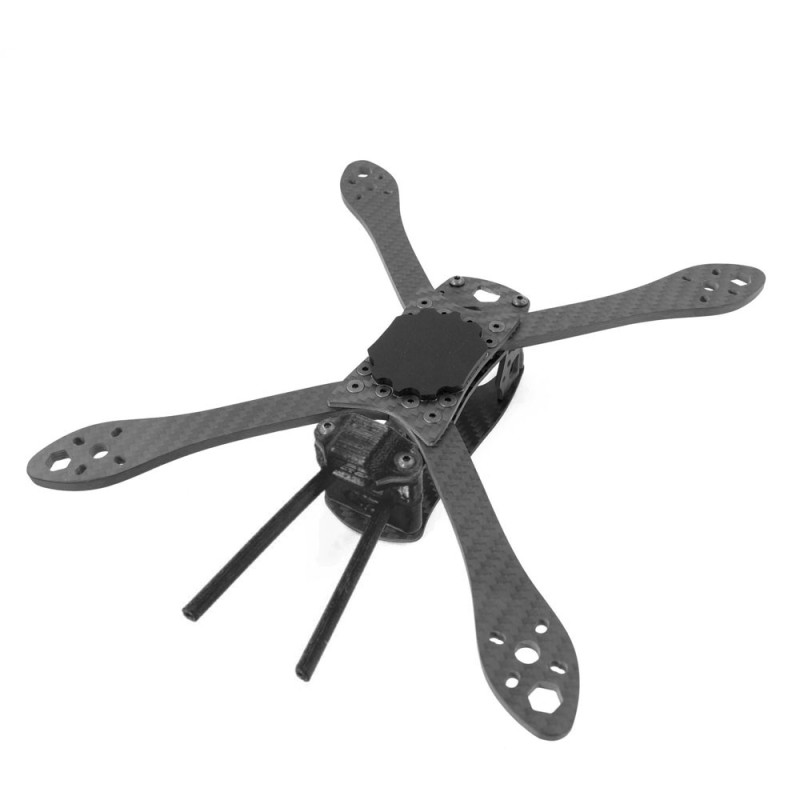

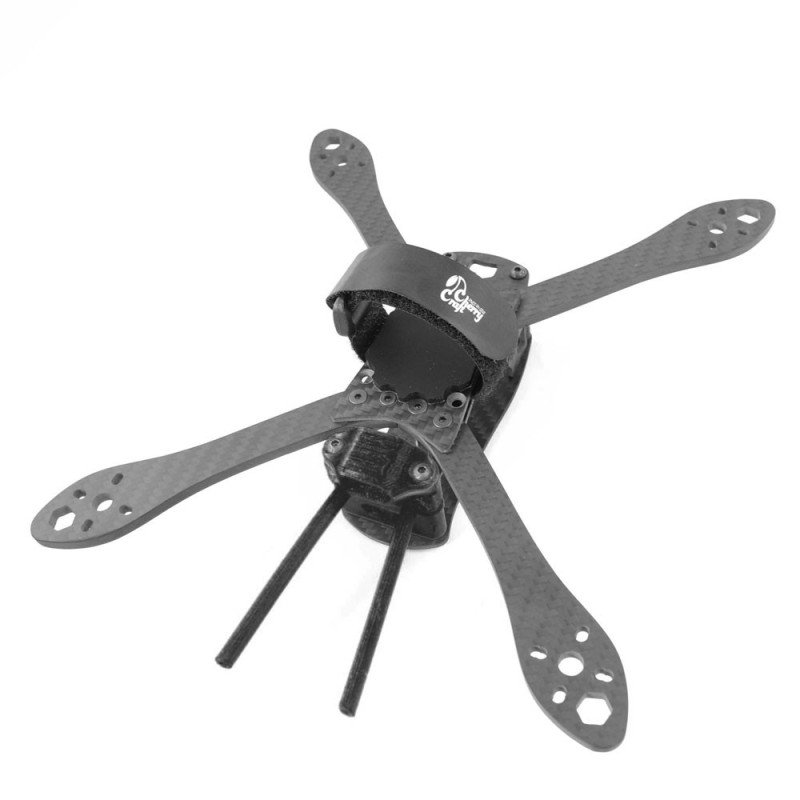

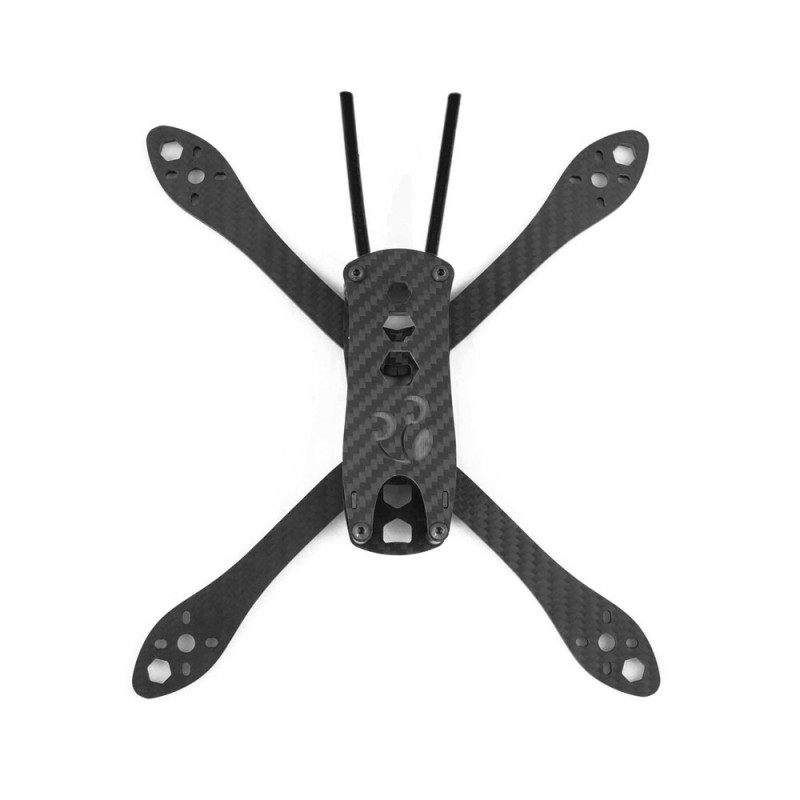

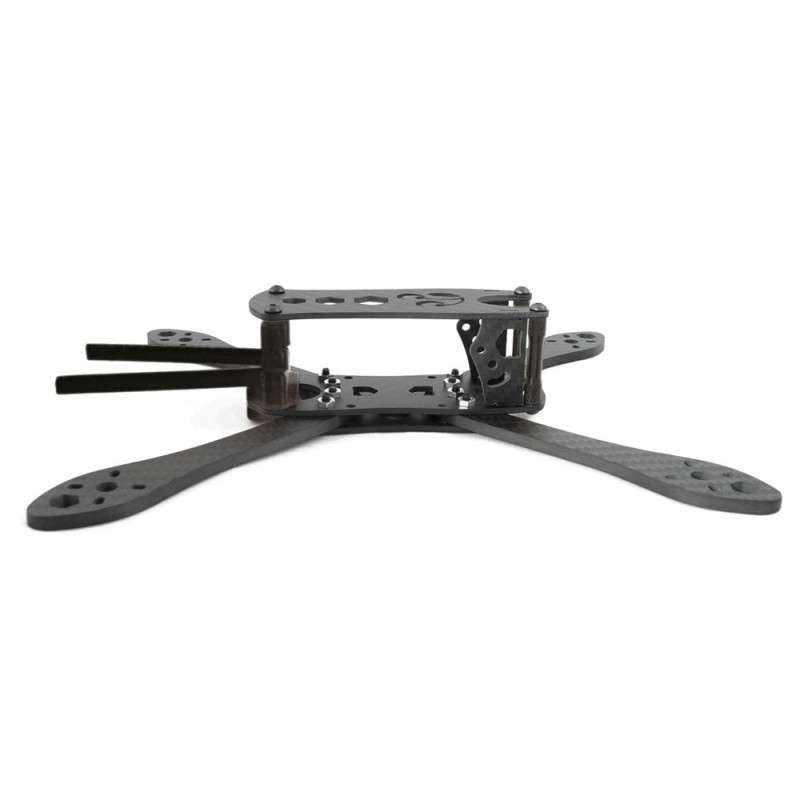

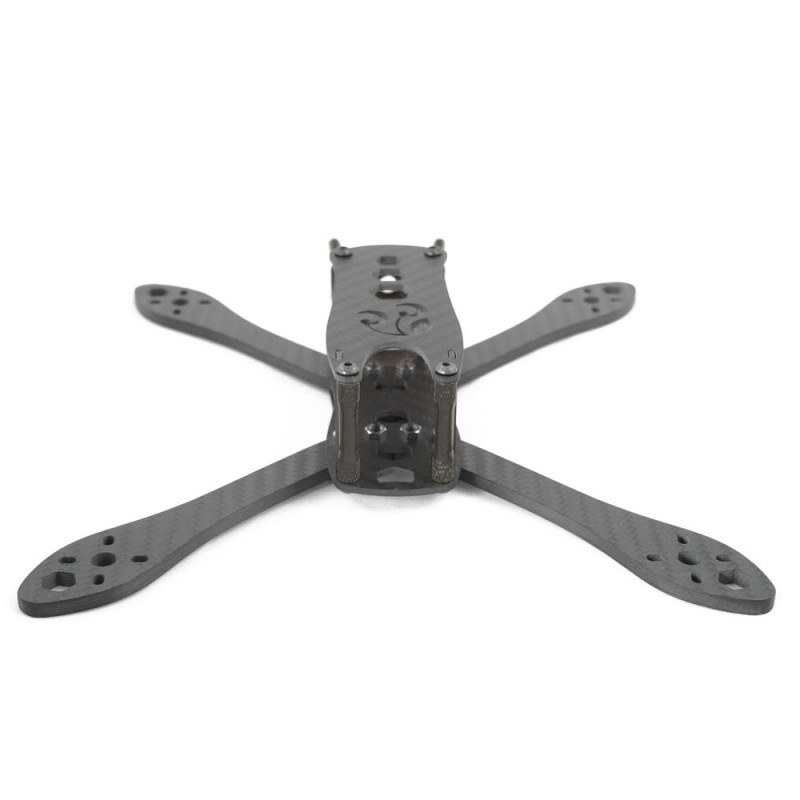

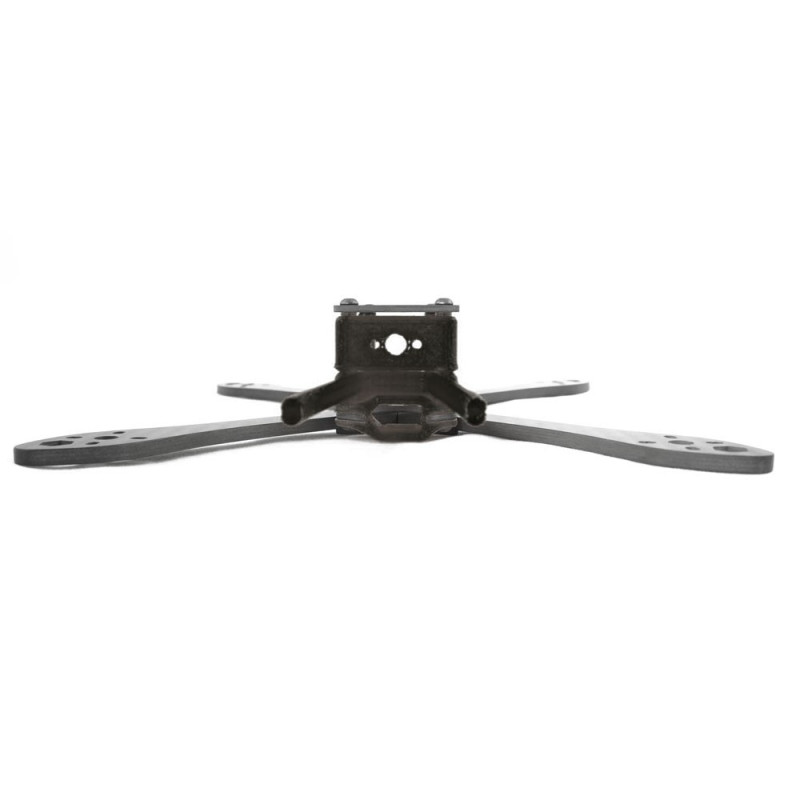

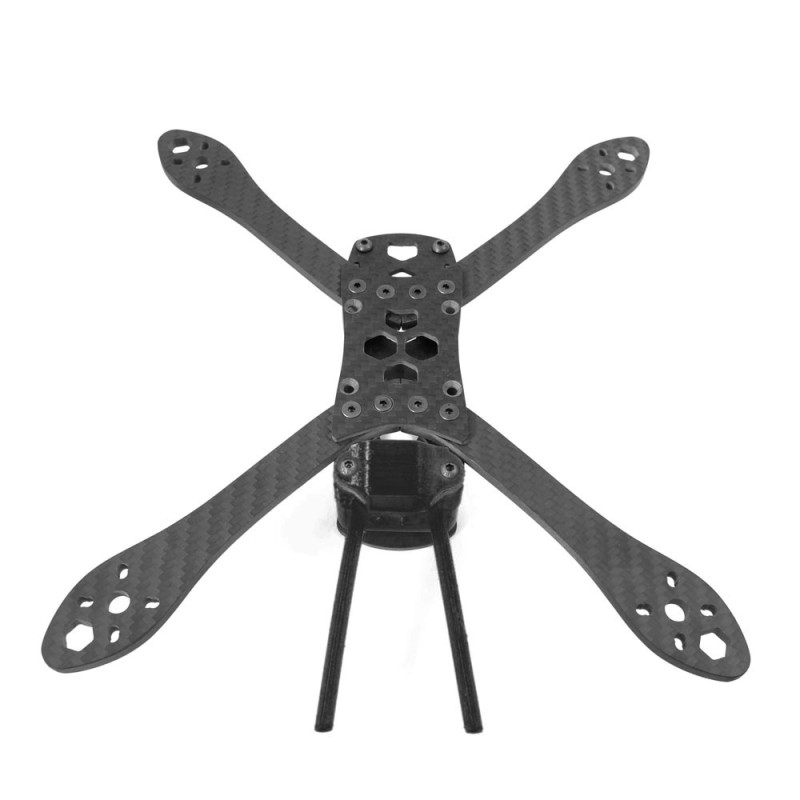

CherryCraft Supreme 5" StretchedX FPV Frame

The CherryCraft frames are handmade and have an exceptionally high level of quality! First and foremost, the frames were developed for racing use, but can also be used as freestyle frames. Fast flying leads to fast crashes. This is why the frame is designed so that the arms can be easily and quickly replaced without removing the screws of the FC stack. On the bottom plate, flat head screws are used to create a flat surface for the lipo. High quality frames, made in Germany and Austria.

Alle 3D Parts are available on Thingiverse: http://www.thingiverse.com/cherrywalter/designs

Features

• 3D-Printed Parts made out of TPU:
  • XT60 Mount
  • VTX Antenna Mount
  • RX Antenna Mount
• Flat Head Socket Screws provides an even surface for the LiPo battery
• Locking Cam mounting holes for newer Cameras like Runcam Swift2 and Foxeer Arrow v3 (HS1177 and Swift1 do also fit)
• Exchangeable 4.2mm Arms
• M3 Pressnut on the bottom plate for easy arm exchange
• Amimon Connex ProSight ready (3D printed parts will be published on Thingiverse soon)
• All parts are available as spare parts
• GoPro Session Mount (35° und 40°) available on Thingiverse

Specifications

• Configuration: StretchedX

• Weight including 3D-parts: 89g
• Weight without 3D-parts: 82g
• Motor mounting axis distance: 220mm
• Material: Matte finish Carbon
• Thickness Arms: 4.2mm
• Thickness Frame: 2mm

Shipping Contents

• 1 x CherryCraft Supreme 5" StretchedX FPV Frame
