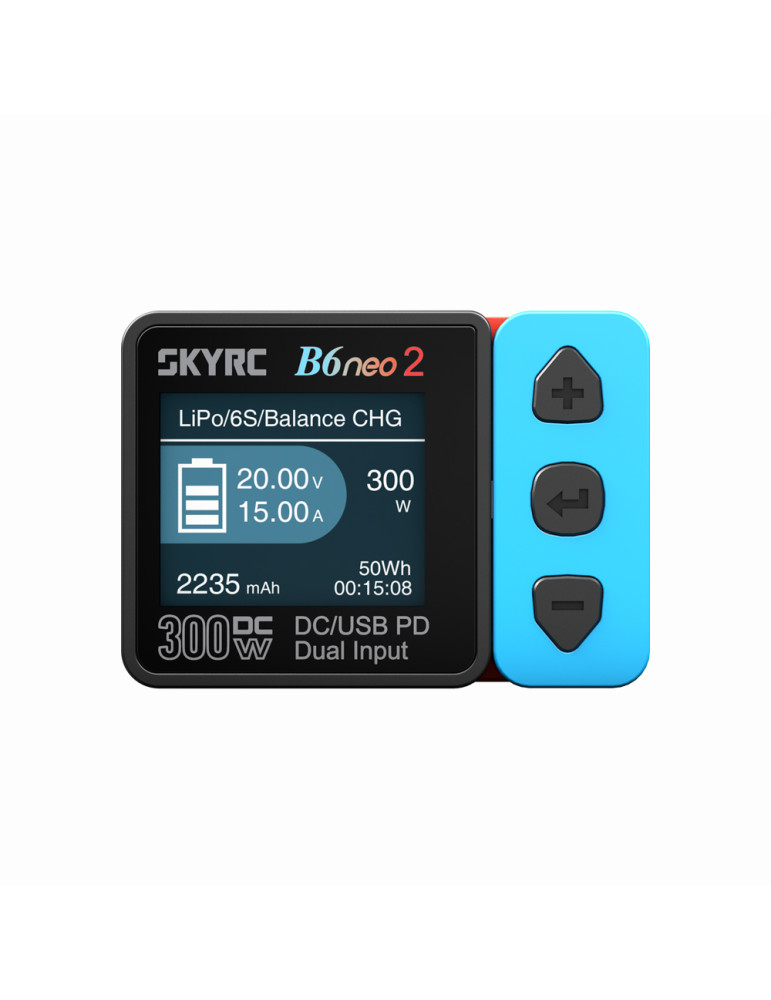

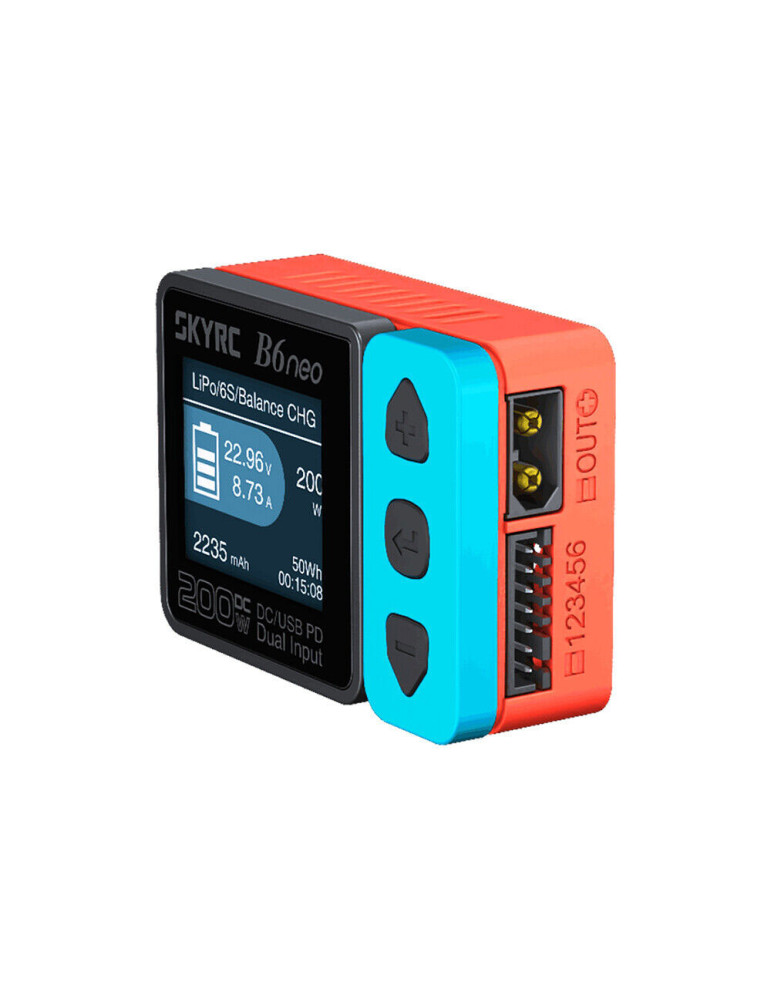

The SkyRC B6neo 2 Smart Charger combines an ultra-compact design with a charging power of up to 300W and 15A. It supports various battery types, including LiPo, LiFe, LiIon, LiHV, NiMH, NiCd, and Pb. Thanks to its XT60 and USB-C PD inputs, the charger offers flexible power supply options.
The B6neo 2 can also be used as an adjustable DC power supply. Its integrated voltage measurement function allows you to check individual battery cell voltages via the balance connector, even without an external power source.
Features
- Up to 300W Charging Power: Maximum charging power of 300W via DC input and 80W via USB-C PD, with a charging current of up to 15A.
- Ultra-Compact Design: Measuring just 70 × 50 × 31 mm and weighing only 82 g, making it ideal for mobile use.

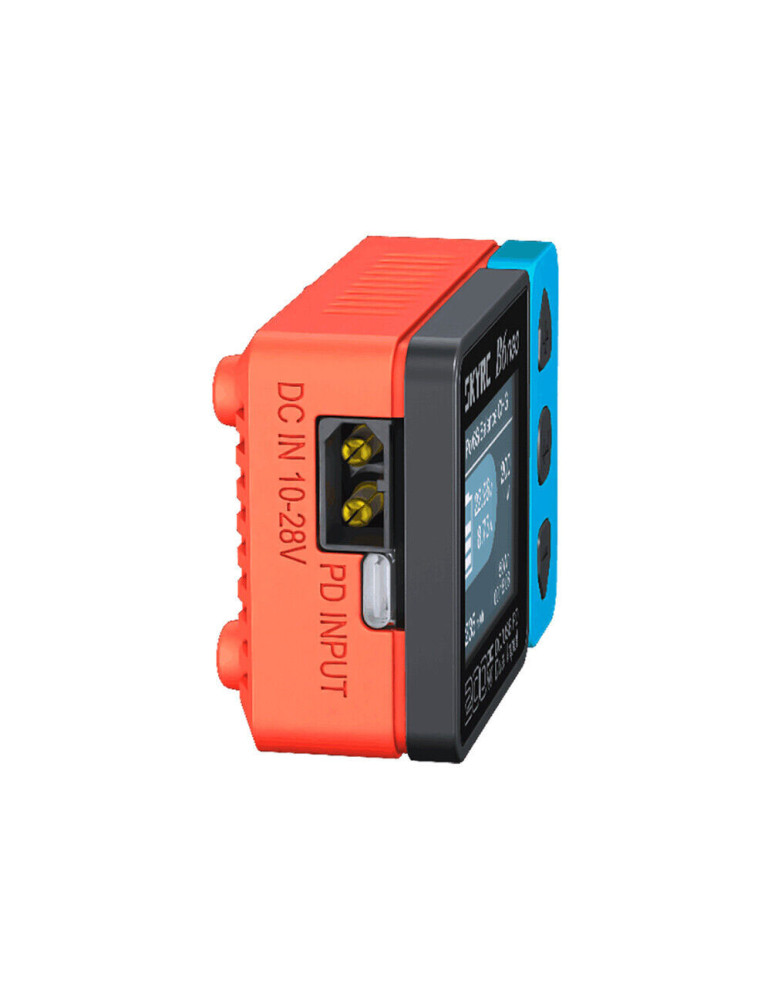

- Flexible Power Supply: XT60 DC input and USB-C PD input for various power sources.
- Efficient Discharging: Up to 24W discharge power when using both the main and balance connectors.
- DC Power Supply Function: Adjustable output voltage from 5 to 27V and output current from 1 to 15A.
- Integrated Battery Checker: Displays total battery voltage and individual cell voltages via the balance connector.

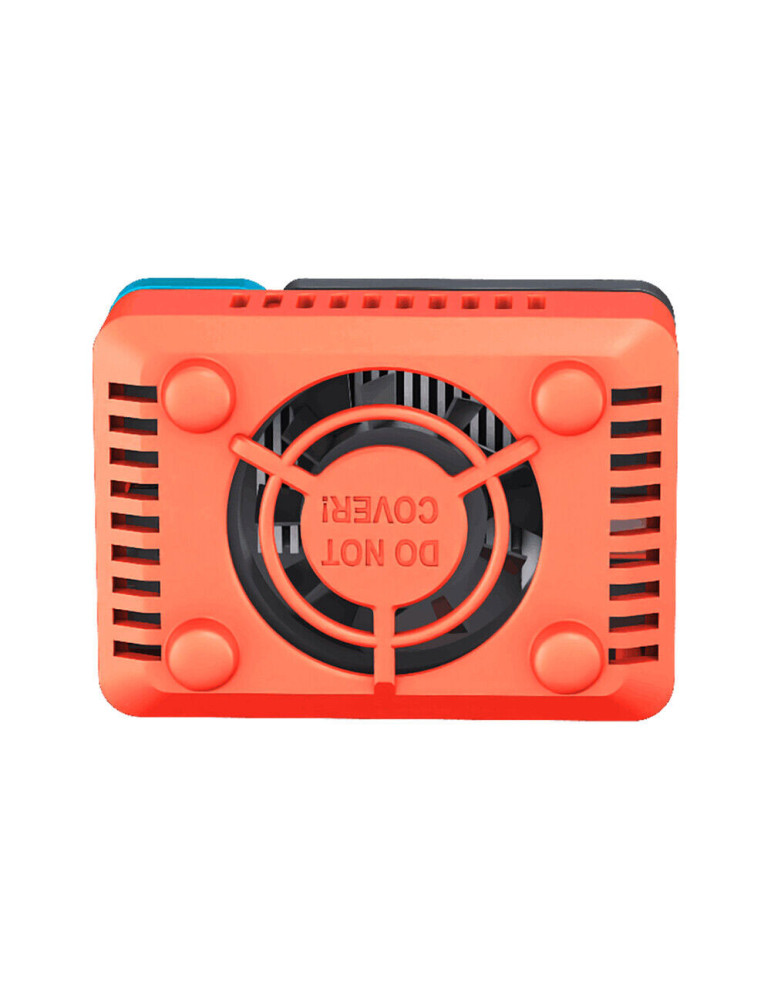

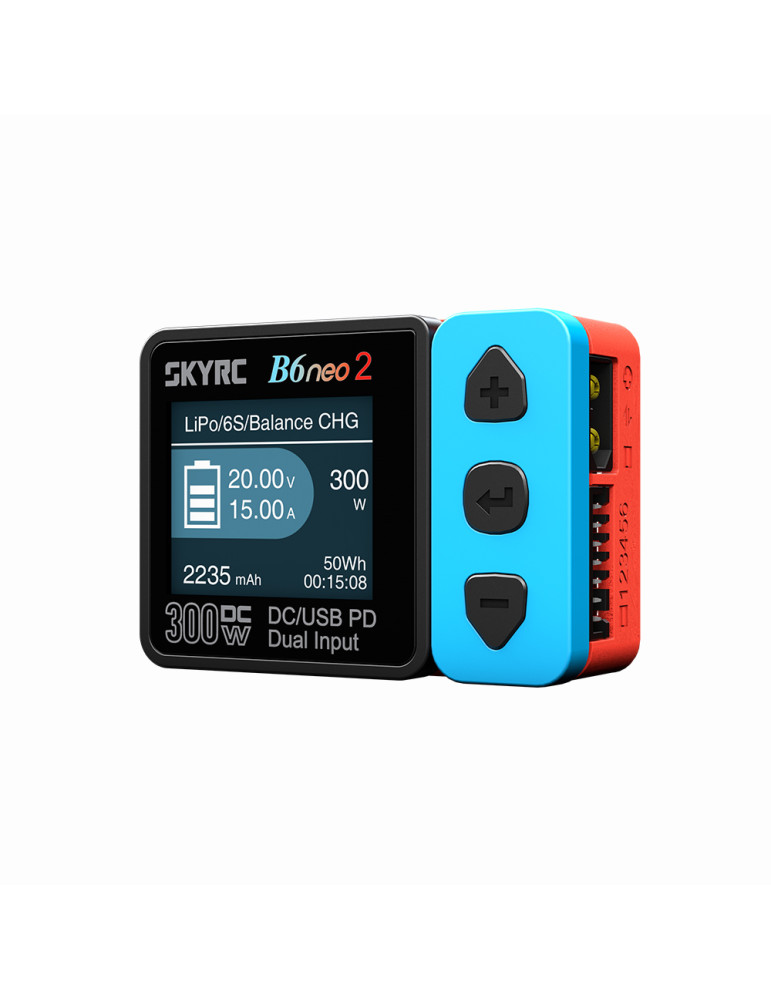

- Intuitive Operation: 1.77-inch color display, intelligent fan control, and firmware updates via USB-C.
Â
Specifications
- Model: SkyRC B6neo 2 (SK-100225)
- DC Input Voltage: 7–28V (XT60)
- USB-C Input Voltage: 12–20V (PD3.0/QC)
- Charging Current: 0.2–15.0A
- Discharging Current: 0.1–2.0A
- Maximum Charging Power: 300W (DC) / 80W (USB-C PD)
- Maximum Discharging Power: 24W
- Balance Current: Max. 550mA
- Supported Battery Types:
- LiPo / LiFe / LiIon / LiHV: 1–6S
- NiMH / NiCd: 1–15 cells
- Pb: 3S / 6S
- Charging Functions: Charge, Balance Charge, Discharge, Storage, and additional battery-specific charging programs
- DC Power Supply: 5–27V / 1–15A (adjustable)
- Display: 1.77 inches, 128 × 160 pixels

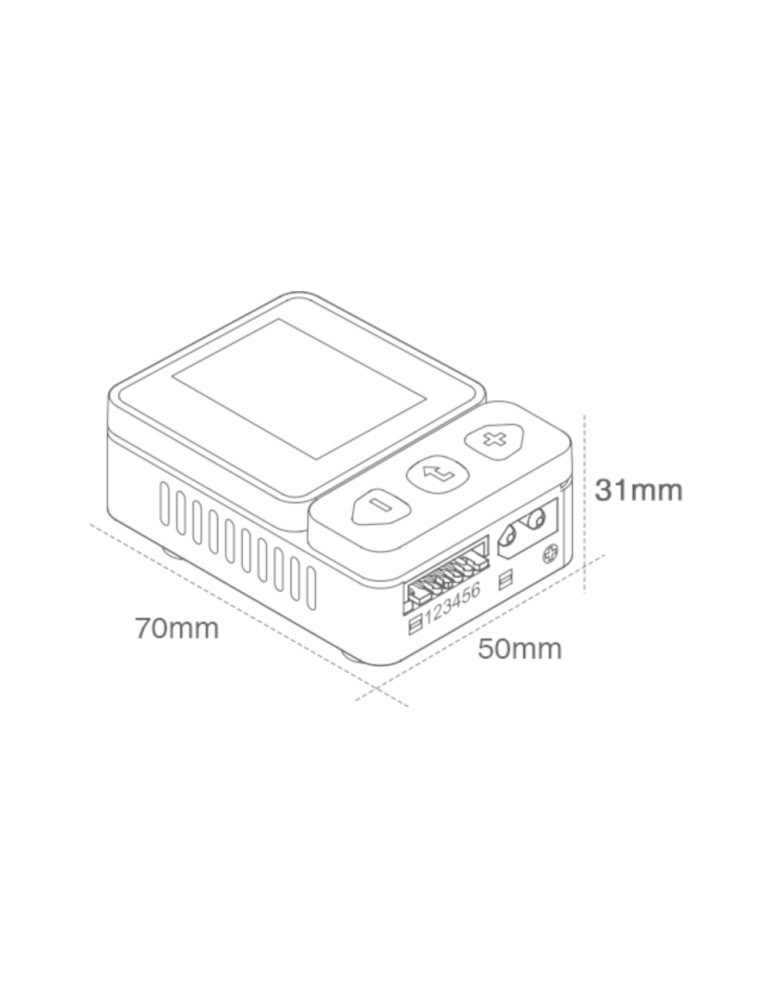

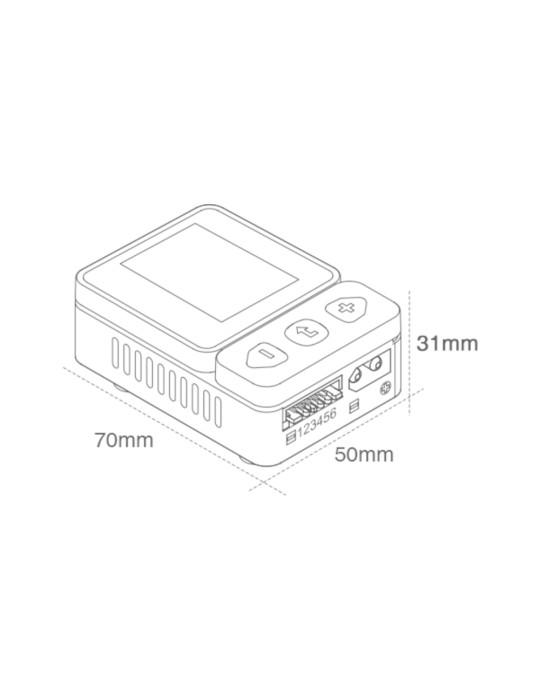

- Dimensions: 70 × 50 × 31 mm
- Weight: 82 g
Â
Note: A suitable external power source via XT60 or USB-C PD is required for operation. The maximum charging power of 300W can only be achieved with a sufficiently powerful DC power supply.
 Â
Shipping Contents
- 1 x SkyRC B6neo 2 Smart Charger
